K1

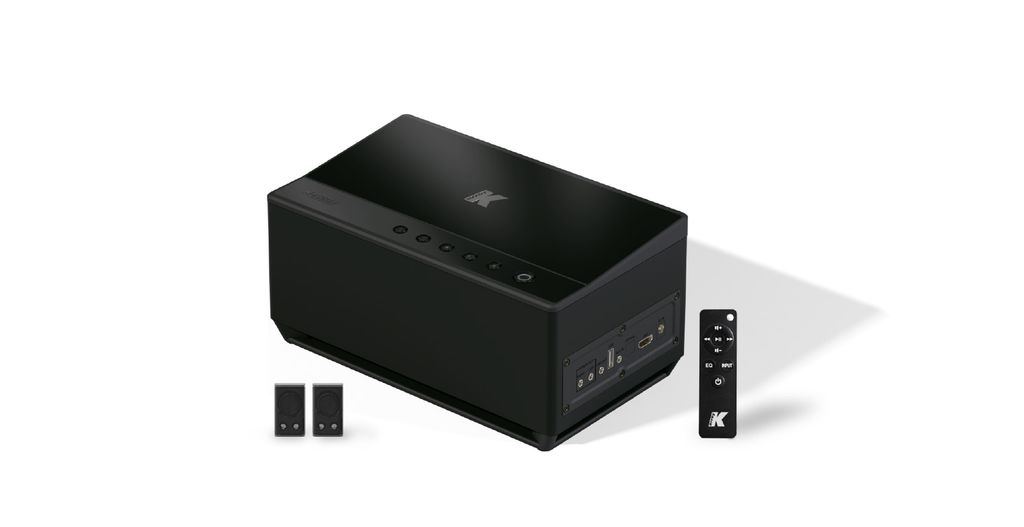

The K1 features of two 3.7-cm-long Lyzard-KZ1 loudspeakers, an ultra-compact active subwoofer. The two mini Lyzard-KZ1 mid-high speakers are virtually invisible with one 0.5” transducer that delivers homogeneous coverage with crystal clear audio and are extremely light thanks to its durable and resistant aluminum enclosure.

The K1 is designed for discreet use in a variety of intimate environments where high-quality background music is needed in a compact form, such as museums and small retail stores.

More information about the K1 line

Design

K1 Coperta
Visually Discreet

For architectural reasons, a visually discreet audio system may be required to integrate seamlessly with the layout without compromising sound quality.

[+]

Plug and Play

Easy to use and quick to install, our active systems are developed with the end user in mind. There is no need to manually configure the system; it's ready to go as soon as it's connected so simply switch it on.

[+]

Technology

Bluetooth Connectivity

With Bluetooth connectivity, users are able to stream preferred music directly from a mobile device, music library or from the web - allowing access to hundreds of thousands of songs.

[+]

Specifications

General

  • Power Handling Subwoofer 40W – Mid-High Frequency 3.5W
  • Impedance Subwoofer 4Ω – Mid High Frequency 16Ω
  • Frequency Range 54Hz – 18KHz (+0/-6dB)
  • Max SPL 98dB peak
  • Coverage Mid High Frequency V.140° - H.140° Subwoofer omni

Transducers

  • Subwoofer 4” high excursion ferrite magnet
  • Mid High Speakers 0.5” neodymium magnet

Audio I/O

  • Analog Unbalanced I 3.5mm jack stereo
  • Optic Optical digital SPDIF
  • USB USB 2.0 A
  • HDMI HDMI type A
  • Bluetooth 5.0 bluetooth version
  • Analog Line Output 3.5mm jack stereo
  • Power Output 2 x 3.5mm jack stereo (Left-Right)

Remote

  • Remote Controller IR remote controller

Amplifier

  • Type 3-channel Class-D audio amplifier
  • Power 1 x 40W @4ohm - 2 x 20W @4ohm (@19Vdc – 10%THD)
  • DC Input Dedicated AC / DC power adapter 100-240V ~ AC, 50-60Hz input / 19V, 2A DC output
  • Max Power Cons. 50W (peak) @19Vdc
  • Protections Output short protection, DC Offset, Over Temperature, Under Voltage Over

Physical Overview

  • Dimensions Subwoofer width: 250mm (9,84in)
  • . height: 112mm (4,41in) depth: 142mm (5,59in)
  • . Mid High Speaker width: 22mm (0,9in)
  • . height: 37mm (1,5in) depth: 11mm (0,4in)
  • Weight Subwoofer 1.9kg (4.19lbs)
  • . Mid High Speaker 0.021kg (0.046lbs)
  • Color Black, White
