Koral-KO102R

Koral-KO102R expands the installation options of the Koral-KO102 with a practical and elegant frame designed for seamless integration in visually sensitive environments. Ideal for premium AV and residential projects, it combines controlled directivity with a minimal footprint, delivering the output and presence of a larger system.

The KO102R features six 3-inch mid-frequency drivers and a dedicated high-frequency unit. A rear switch selects Pure Array mode for extended throw and linear coherence, or Point Source mode for wider dispersion and flexible coverage.

In residential installations, Point Source mode enables use as a center, left/right, or surround speaker, ensuring consistent performance while preserving interior aesthetics. The weather-rated stainless steel enclosure is available in Black or White, with RAL options and premium metal finishes, while the customizable grille delivers a clean, architectural look that blends seamlessly into the environment, minimal in appearance, yet fully functional.

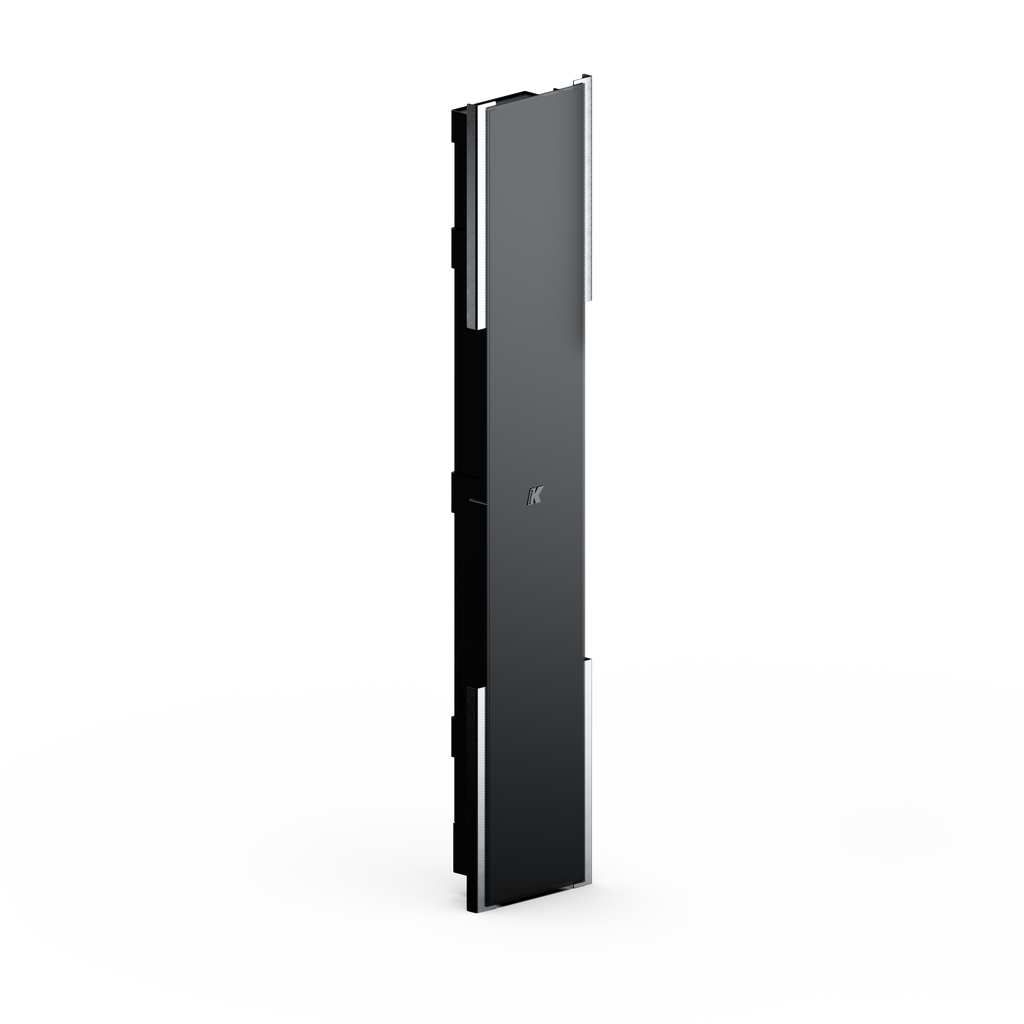

KO102  black model
KO102RW  white model
KO102RX customizable RAL color (customizable part GRILLE only)
KO102RXX (customizable part GRILLE only)
KO102RXG (customizable part GRILLE only)

All Koral-KO102R components are designed by the K-array R&D department and are custom-made under the K-array quality control system in Italy.

Share:

Koral

Learn more about Koral line!

Specifications

General

  • Type:

    Selectable: Line array L.A
    / Point source P.S

  • Transducers:

    6 x 3.15' neodymium magnet woofers
    1.1'' dome tweeter in P.S

  • Frequency Response:

    125 Hz - 20 kHz (-6 dB)

     (1)

  • Max SPL:

    128 dB (peak)

     (2)

  • Rated Power:

    360 W

  • Coverage:

    V.10° - H.90° Line array
    V.90° - H.90° Point source

  • Connectors:

    Euroblock 2,5/ 2-ST-5,08

  • Nominal Impedance:

    8 Ω

  • Weight:

    9,25 Kg (20.39 lb)

Handling and Finishes

  • Dimensions (W x H x D):

    950x 120x 80 mm
    (37,4x 4,7x 3,1 in)

  • Material:

    Stainless Steel

  • Colors:

    Black, White, Custom RAL, Custom Finish, Gold

  • Finishes:

    24K Gold, Polished

Regulations

  • IP Rating:

    IP54

  • (1) With dedicated preset
  • (2) Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 8 m then scaled at 1 m

  • Passive loudspeakers require dedicated presets loaded onboard K-array amplifiers.
    New materials and designs are introduced into existing products without previous notice.
