Dolomite-KRD202P

Dolomite-KRD202P sets a new benchmark in high-performance portable audio systems. Each full-range tower integrates 32x 2" drivers with Pure Array Technology (PAT), paired with 4x 10" subwoofers and 4x 10" passive radiators, housed in modular 1-meter sections for scalable and flexible deployment.

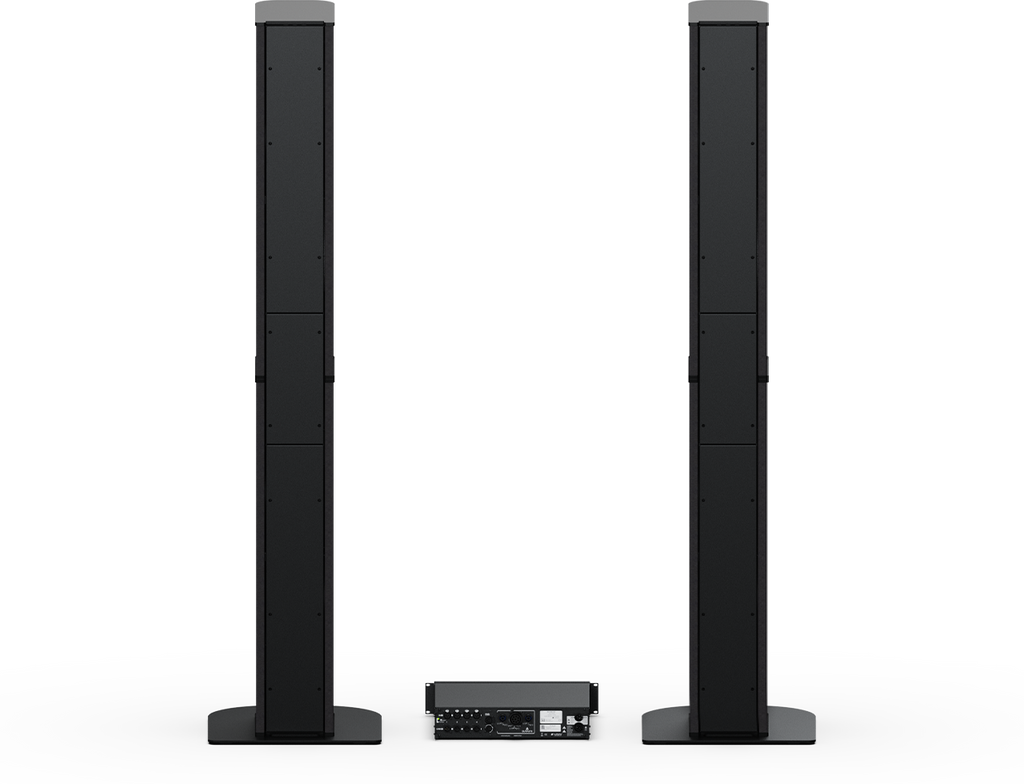

Sold as a stereo kit, the system includes 2-meter towers per side, dedicated mounting hardware, a ground-stacking base, and the KA104LIVE amplifier.

By combining array drivers, subwoofers, and passive radiators within a single tower body, the system achieves a highly linear and accurate frequency response, making it ideal for long-throw applications. The passive radiators enhance low-end performance by increasing perceived bass volume and system efficiency without adding bulk or requiring more power — making it a true full-range solution for premium audio applications.

Built for durability, each module features a weather-resistant stainless steel frame wrapped in acoustically transparent fabric, combining ruggedness with a refined aesthetic. The modular design allows for compact or large-scale configurations, adapting seamlessly to premium environments—from luxury private events to hospitality venues and high-end residential settings.

Share:

Dolomite

Design meets High Performance

Learn more about Dolomite line!

Specifications

General

  • Type:

    Line array

  • Transducers:

    1x module with 16 x 2" neodymium magnet woofers
    2 x 10" neodymium magnet woofers
    2 x 10" passive radiators

    system:

    32 x 2" neodymium magnet woofers
    4 x 10" neodymium magnet woofers
    4 x 10" passive radiators

  • Frequency Response:

    41Hz - 18kHz (-6dB)

     (1)

  • Max SPL:

    127 dB (peak) Half space

     (2)

  • Rated Power:

    400x2 W (MHF) + 1600 (LF) W

  • Coverage:

    V. 7° | H. 120° (array)

  • Connectors:

    2 x SpeakOn NL4 1+ 1- (signal); 2+ 2- (through)

  • Nominal Impedance:

    system: 4 Ω + 4 Ω bi-amplified

Handling and Finishes

  • Dimensions (W x H x D):

    220 x 1000 x 360mm (8.7 x 39.4 x 14.2)

  • Weight:

    system modules: 76 kg + standing bases

  • Material:

    Stainless Steel

  • Colors:

    Black

Regulations

  • IP Rating:

    IP64 (IP65 compliant with dedicated K-IP65KITB)

  • (1) With dedicated preset.
  • (2) Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 1 m.

  • Passive loudspeakers requires dedicated preset loaded on board of K-array amplifiers.

  • New materials and design are introduced into existing products without previous notice.

Downloads

KRD202P Datasheet

V.1

KRD202P User Guide ENG

v.1

CE Declaration of Conformity
