New generation of powerful point source elements

New generation of powerful point source elements

Compact Power, Iconic Sound


The Dragon family represents a powerful and compact range of point source systems featuring coaxial and triaxial technology, combining exceptional performance with an iconic design. Engineered for sophisticated installations, these systems deliver high pressure in the near field with rapid sound attenuation over distance, making them versatile tools for installers in premium venues and refined club environments.

Dragon family texture inspo

Advanced Coaxial & Triaxial Design


The KXT models adopt coaxial and triaxial configurations to deliver a compact footprint, outstanding coherence, and highly intelligible sound reproduction. By aligning multiple drivers along a single acoustic axis, these systems act as true point sources—ensuring a focused, uniform sound field with minimal phase interference.

Dragon-KX12 I



The Coaxial model provides fast transient response and consistent dispersion, ideal for precise near-field applications.

Dragon-KX12 I exploded view coaxial speaker

Dragon-KXT12P & Dragon-KXT18P



The Triaxial design, featuring an additional midrange transducer, takes performance further by enhancing vocal clarity and preserving tonal balance even at high SPLs.

Dragon-KXT18P exploded view triaxial speaker

This architecture contributes to a clean, controlled sonic signature, with accurate imaging and reliable coverage across the entire listening area. The result is a versatile solution tailored for environments requiring clarity, definition, and seamless integration—without compromising on power or design.

Dj set Dragon-KXT12P loudspeaker

Dragon-KXT12P

Coaxial point source speaker:

  • 12” neodymium magnet woofer
  • 3” compression driver
  • 2” compression driver
  • 15” passive radiator


Dimensions:

  • (WxHxD) 500 x 735 x 400 mm (19,7 x 28.9 x 15,8 in)
  • Weight 30 kg


Materials:

  • Birch Plywood
  • Color Black cabinet, custom RAL cabinet
  • Silver Horn, Black Horn, custom RAL Horn
Dragon-KXT12P speaker by K-array
Dragon triaxial rotatable horn by K-array

Precise Coverage, Flexible Configuration


The KXT12P and KXT18P feature a rotatable horn with fixed coverage of 60°×40°. By rotating the horn, the dispersion switches allowing for easy adaptation to different acoustic and architectural needs. The enclosure design is specifically engineered to enable tight horizontal and vertical clustering. The shape and waveguide contribute to smooth acoustic coupling between units, ensuring uniform sound dispersion and consistent coverage, especially in the near field. A full range of mounting and suspension accessories supports various installation setups, making the KXT series a flexible and scalable solution for professional sound systems that require both precision and adaptability.

Assembly accessories KXT12P and KXT18P Dragon Family speaker by K-array

Dragon-KXT18P

Triaxial point source speaker:

  • 18” neodymium magnet woofer
  • 4” compression driver (MF)
  • 2,5” compression driver (HF)


Dimensions:

  • (WxHxD) 650 x 735 x 580 mm (25.6 x 28.9 x 22.8 in)
  • Weight 40,8 kg


Materials:

  • Birch Plywood
  • Color Black cabinet, custom RAL cabinet
  • Silver Horn, Black Horn, custom RAL Horn
Dragon-KXT18P speaker by K-array
Dragon-KXT18P installation nightclubs, Tenax, by K-array

KX12 I: Flexible Coverage, Precise Control


KX12 I is a compact point source system with optimized directivity, designed for standalone use or array configurations. When used in arrays, it supports EBS (Electronic Beam Steering) technology, enabling precise electronic control of dispersion. Each unit contributes to a focused, coherent coverage, minimizing reflections and ensuring consistent SPL across the listening area. This makes the KX12 I ideal for applications requiring high intelligibility, accurate coverage, and clean integration.

Dragon-KX12 I speaker installation by K-array

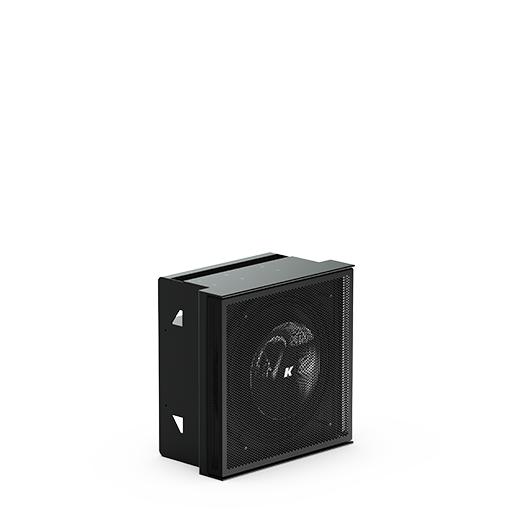

Dragon-KX12 I

Point source speaker:

  • 12” woofer
  • 1,7” coaxial compression driver


Dimensions:

  • (WxHxD) 350 x 350 x 203 mm (13.8 x 13.8 x 8 in)
  • Weight 15 kg


Materials:

  • Stainless Steel
  • Color Black cabinet, custom RAL cabinet
  • Silver Horn, Black Horn, custom RAL Horn
Dragon-KX12 I speaker by K-array

Flexible Sound for Every Setup



The Dragon family of point source speakers excels in high-intensity applications, from DJ monitoring in exclusive venues to versatile near field configurations for clubs, theaters, live events and diverse applications where power and precision meets elegance.

Unique style of the Dragon


The horn  features a distinctive silver finish that sets the installation apart. With the option to cover it by a mesh grille or to leave it exposed, the design remains elegantly transparent, adding a touch of sophistication to any settings. A black or custom horn is available in various colors to suit your style.

Detail grid and horn of Dragon family by K-array loudspeakers
