Koral
Two Acoustic Identities, One Design

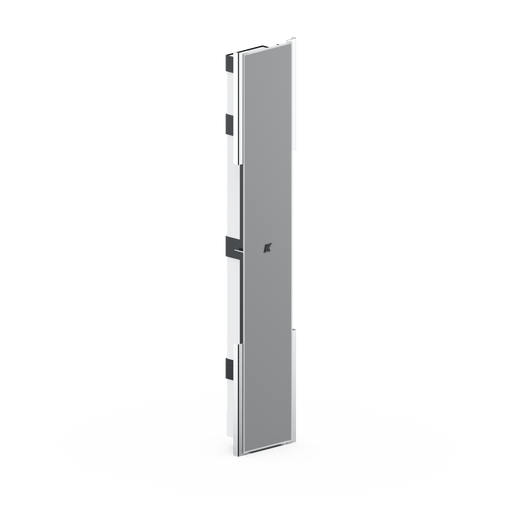

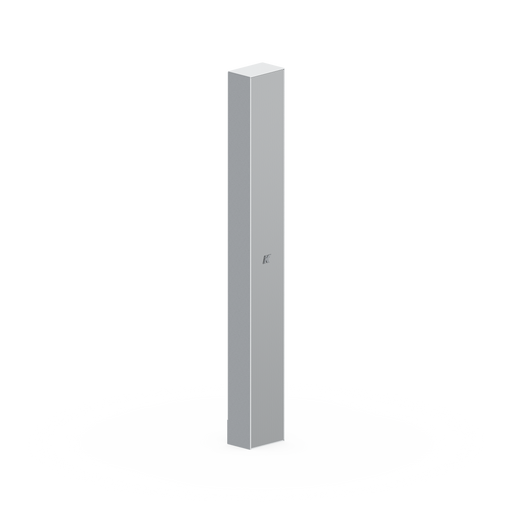

KORAL is the new family of stainless-steel loudspeakers designed to merge two acoustic identities into one. It brings together line-array directivity or precise, focused point-source acoustic behavior, with the ability to choose between the two within a single loudspeaker. Engineered for architectural integration and outdoor durability, Koral blends advanced acoustic design with a refined, robust aesthetic.
Koral-KO102
Type: Line array | Point source (selectable)
Transducers: 6 x 3.15'' woofer + 1.1'' tweeter
Frequency Range: 125 Hz - 18 kHz (-6 dB)
Max SPL: 128 dB (peak)
Rated Power: 360 W
Coverage: V 10° H 90° in LA | V 60° H 90° in PS
Impedance: 8 Ω
Line Array
The line-array behavior is achieved through six closely spaced 3.15'' woofers, leveraging K-array’s Pure Array Technology (PAT) to form a pure line-array configuration with extremely high directivity and control. A defined coverage of 10° vertically and 90° horizontally ensures precise sound distribution, making this configuration particularly effective in complex architectural spaces.
Point Source
In point-source mode, Koral adopts a dedicated 1.1'' high-frequency transducer that extends the vertical coverage up to 90°, enabling a wider and more focused sound radiation. A dedicated switch manages the contribution of the system’s components according to the selected configuration, allowing Koral to adapt its acoustic behavior and deliver a more open and evenly distributed sound field.
One Solution, Multiple Applications
Designed for both on-wall and recessed installation, Koral integrates discreetly into architectural spaces through a refined enclosure and a fully flush grille. Its dual line-array and point-source behavior supports residential, hospitality, corporate, and home cinema applications - including center-channel use, while the stainless-steel construction with no components exposed ensures long-term reliability for both indoor and outdoor installations.
Design Shaped by Acoustics
Koral’s compact form and minimalist design emphasise elegance through simplicity and balance. A carefully engineered hexagonal grille pattern completes the enclosure, contributing to improved sound dispersion and greater acoustic uniformity while defining a subtle, refined visual identity.
Blending into Architecture
Koral is constructed using premium materials and high-quality components: its stainless-steel frame can be finished in custom colours to complement architectural designs. When recessed, the grille can be tailored to allow the loudspeaker to blend seamlessly into the space, maintaining a clean and unobtrusive presence.
