Koral-KO102

K-array introduces the Koral-KO102, a compact column speaker delivering professional performance in visually sensitive environments. Designed for premium AV and residential applications, it combines controlled directivity with a minimal footprint while offering the output of a larger system.

The KO102 features six 3-inch mid-frequency drivers and a dedicated high-frequency unit. A rear switch selects Pure Array mode for extended throw and linear coherence, or Point Source mode for wider dispersion and flexible mounting.

In residential installations, Point Source mode allows use as a centre, left/right or surround speaker, ensuring consistent coverage without compromising interior design. The weather-rated stainless steel enclosure supports recessed or surface mounting and is available in Black or White, with RAL colors and premium metal finishes.

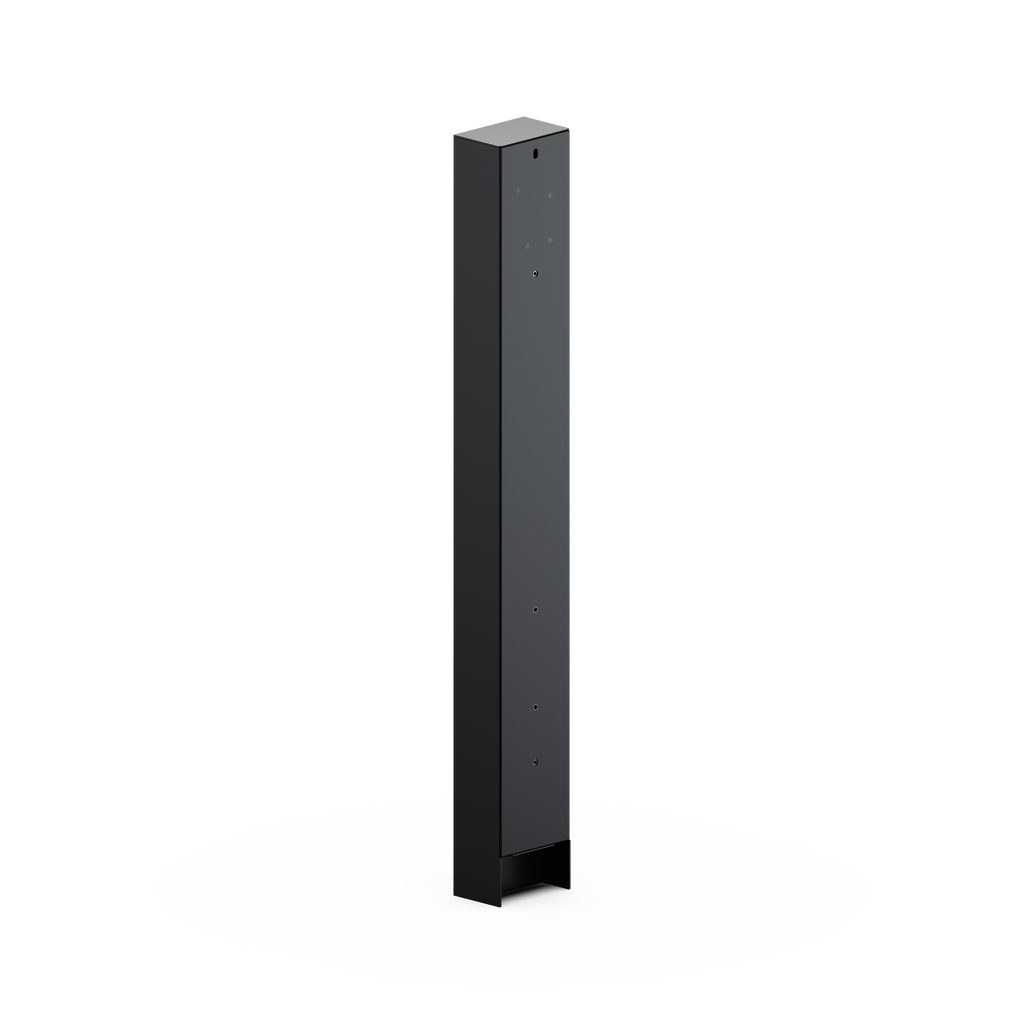

KO102  black model

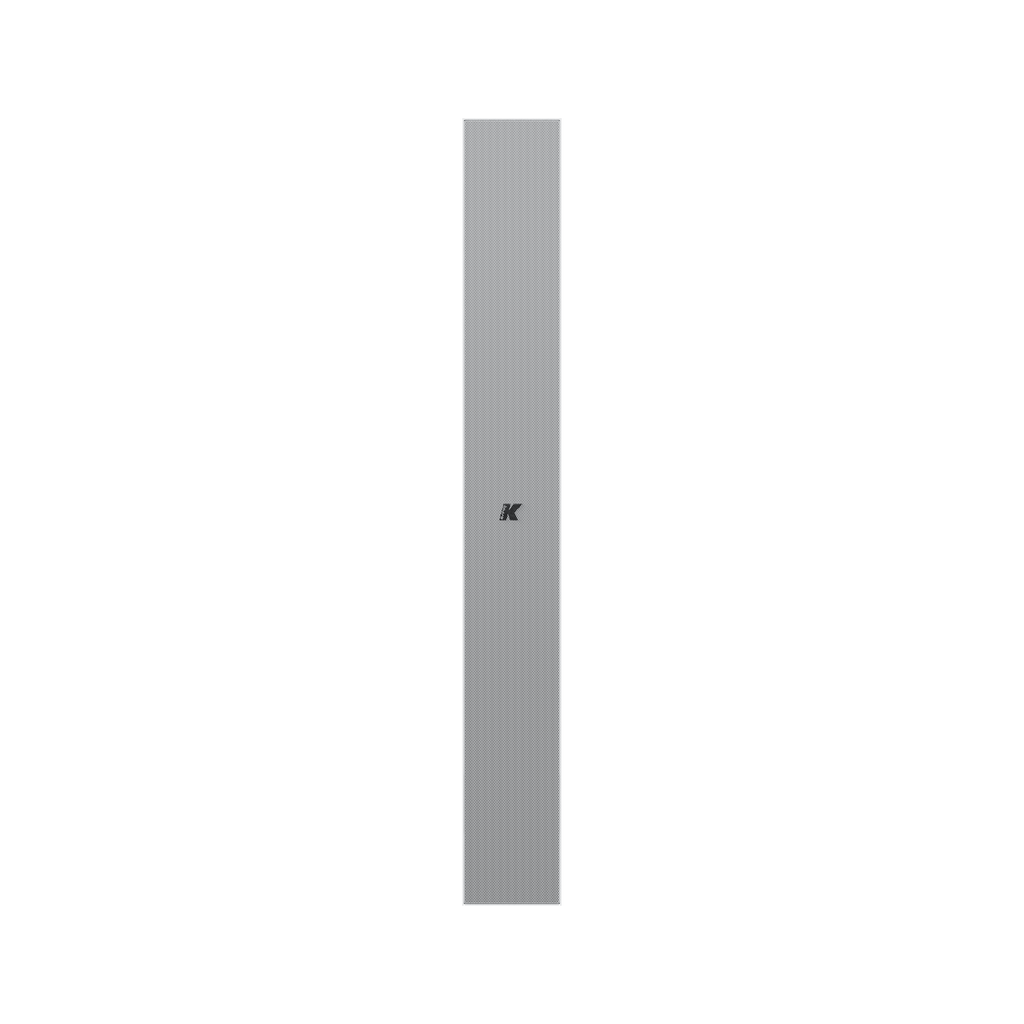

KO102W  white model

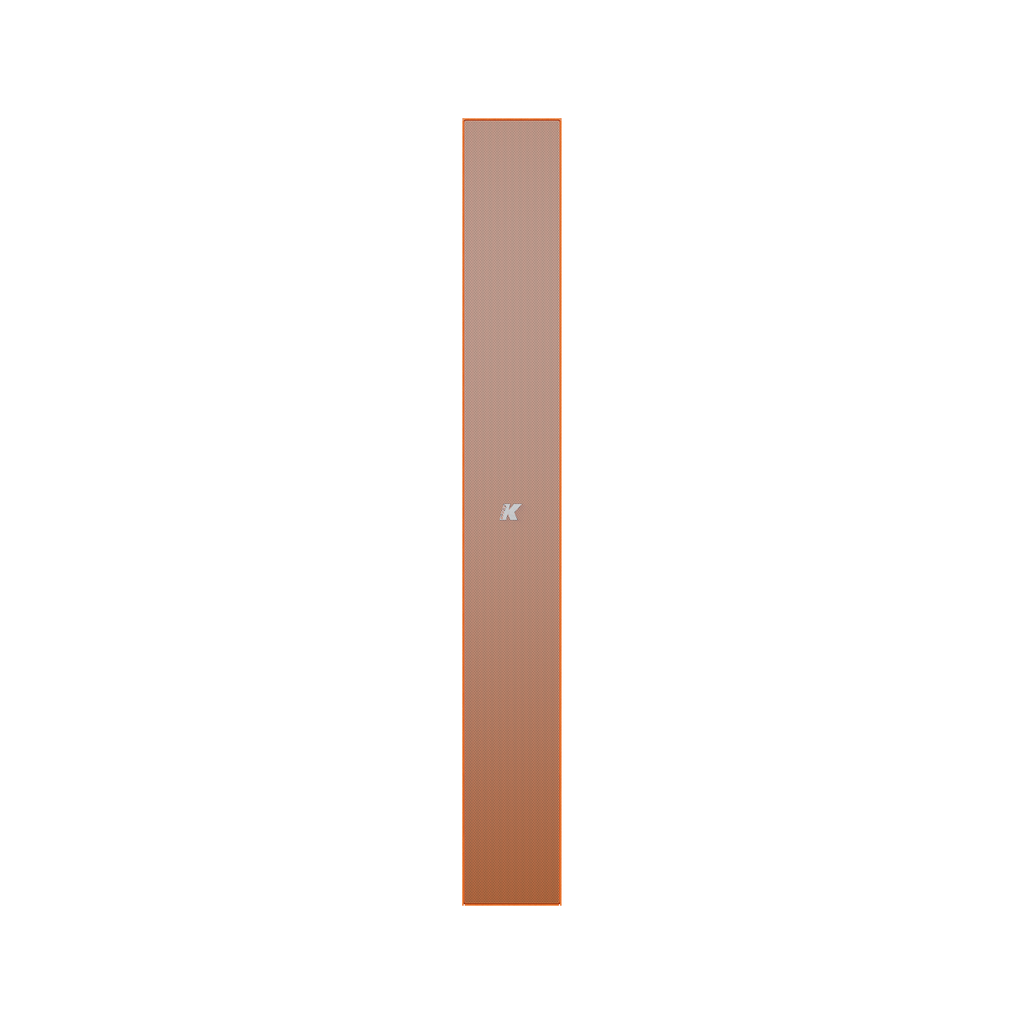

KO102X customizable RAL color and finish (grille)
KO102XX customizable finish

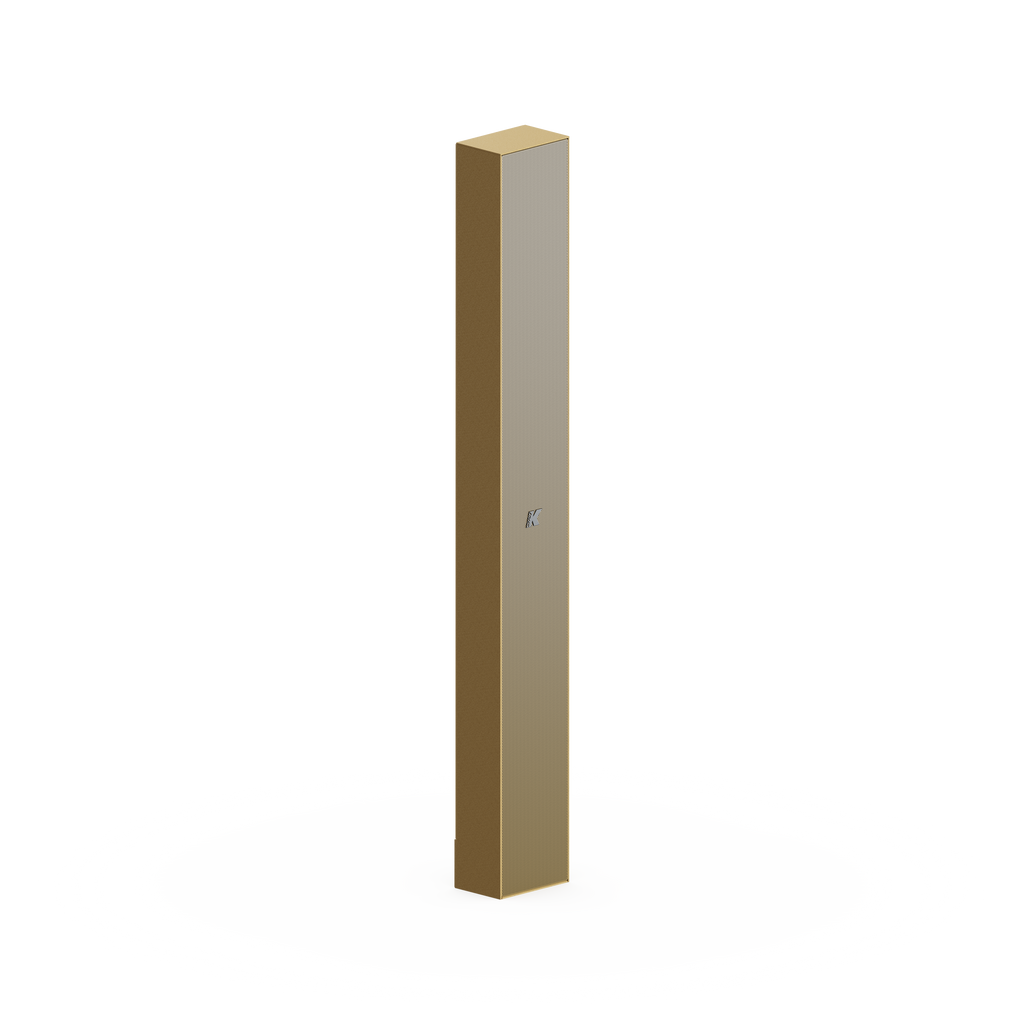

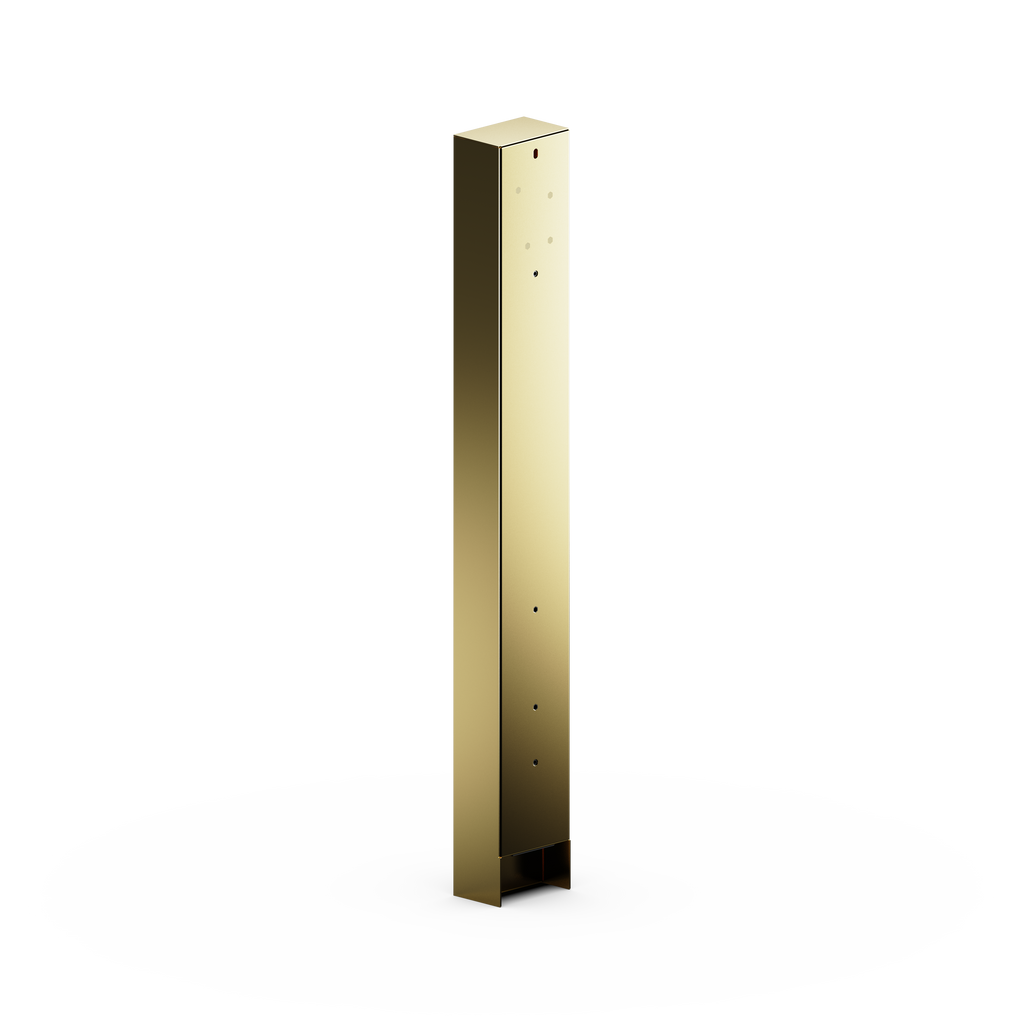

KO102XG gold plated finish

All Koral-KO102 components are designed by the K-array R&D department and are custom-made under the K-array quality control system in Italy.

Share:

Koral

Versatile column speaker for architectural audio

Learn more about Koral line!

Specifications

General

  • Type:

    Selectable: Line array L.A
    / Point source P.S

  • Transducers:

    6 x 3.15' neodymium magnet woofers
    1.1'' dome tweeter in P.S

  • Frequency Response:

    125 Hz - 20 kHz (-6 dB)

     (1)

  • Max SPL:

    128 dB (peak)

     (2)

  • Rated Power:

    360 W

  • Coverage:

    V.10° - H.90° Line array
    V.90° - H.90° Point source

  • Connectors:

    Euroblock 2,5/ 2-ST-5,08

  • Nominal Impedance:

    8 Ω

  • Weight:

    9,25 Kg (20.39 lb)

Handling and Finishes

  • Dimensions (W x H x D):

    950x 120x 80 mm
    (37,4x 4,7x 3,1 in)

  • Material:

    Stainless Steel

  • Colors:

    Black, White, Custom RAL, Custom Finish, Gold

  • Finishes:

    24K Gold, Polished

Regulations

  • IP Rating:

    IP54

  • (1) With dedicated preset
  • (2) Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 8 m then scaled at 1 m

  • Passive loudspeakers require dedicated presets loaded onboard K-array amplifiers.
    New materials and designs are introduced into existing products without previous notice.

Downloads

Koral-KO102 Datasheet

V.01 Preliminary
