Azimut-KAMUT2L II

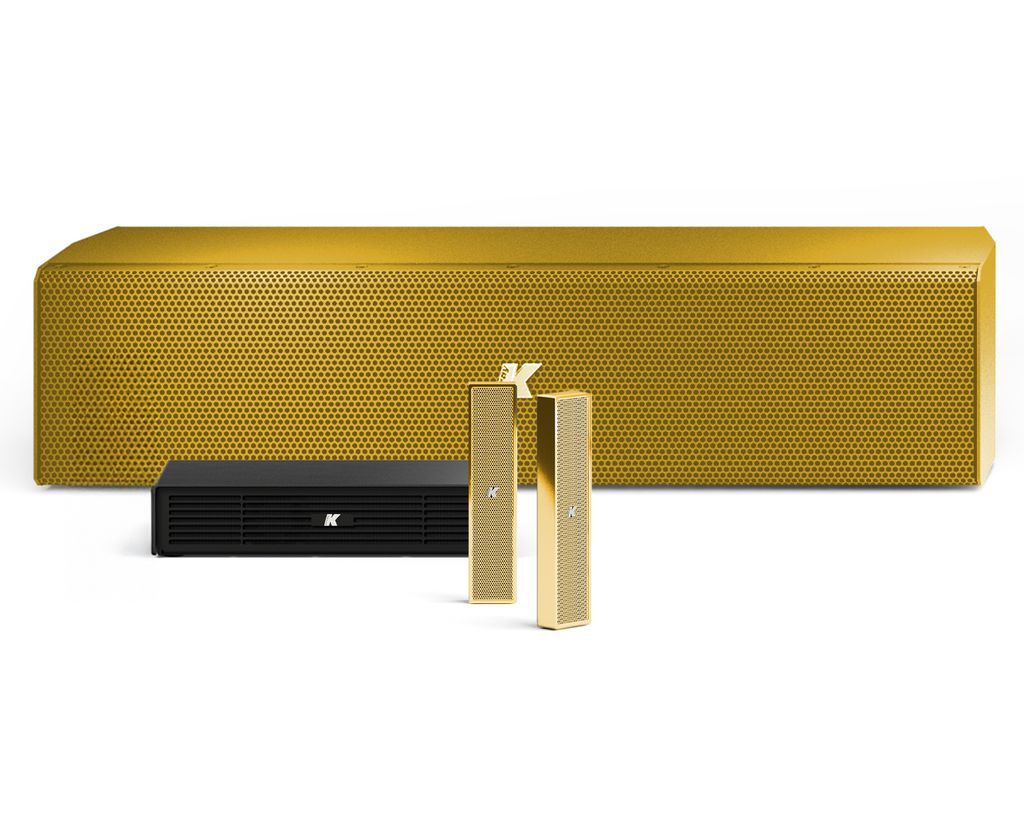

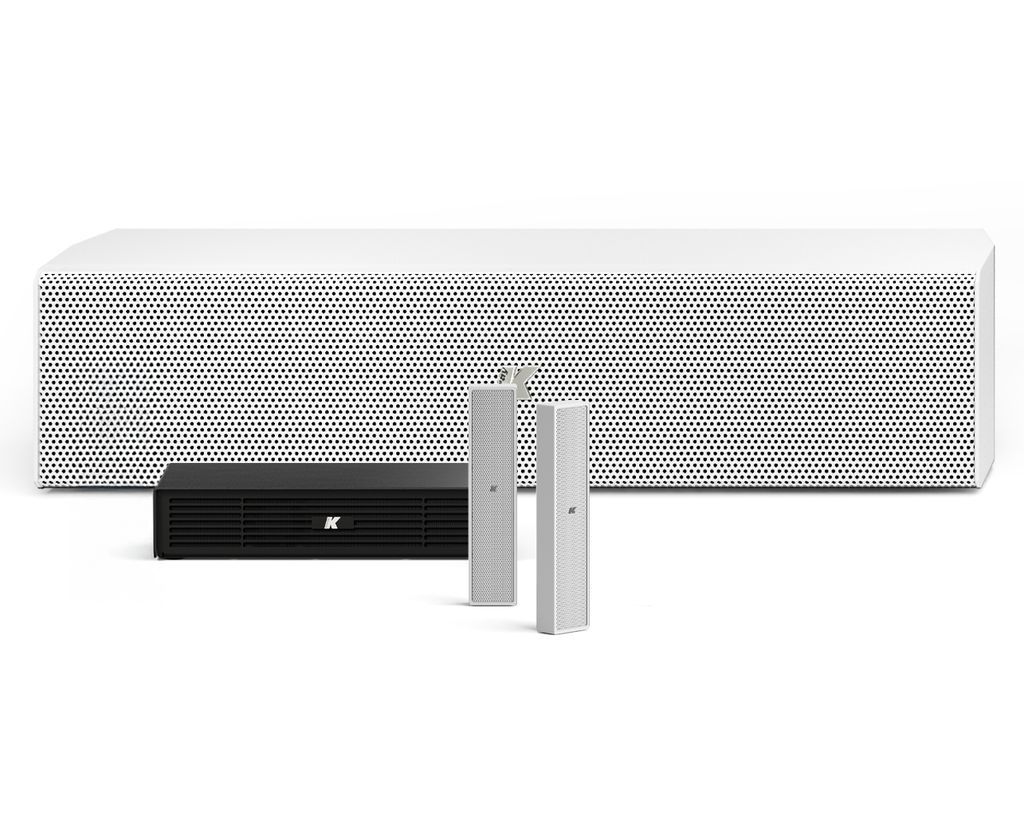

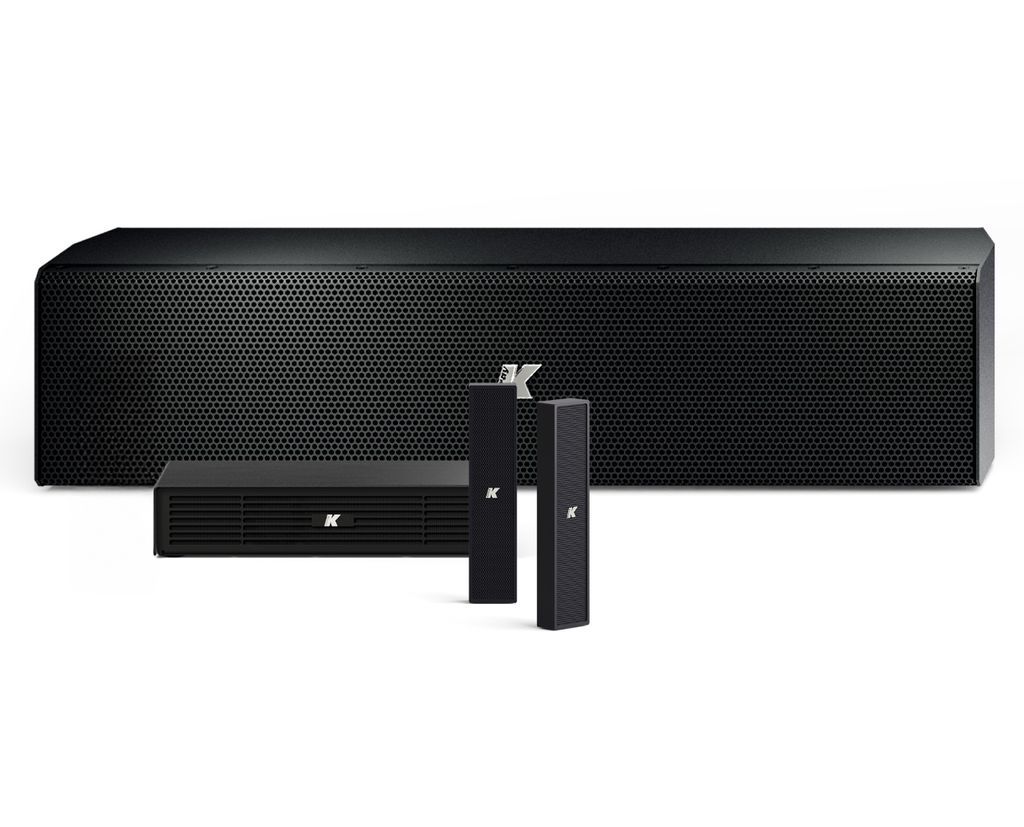

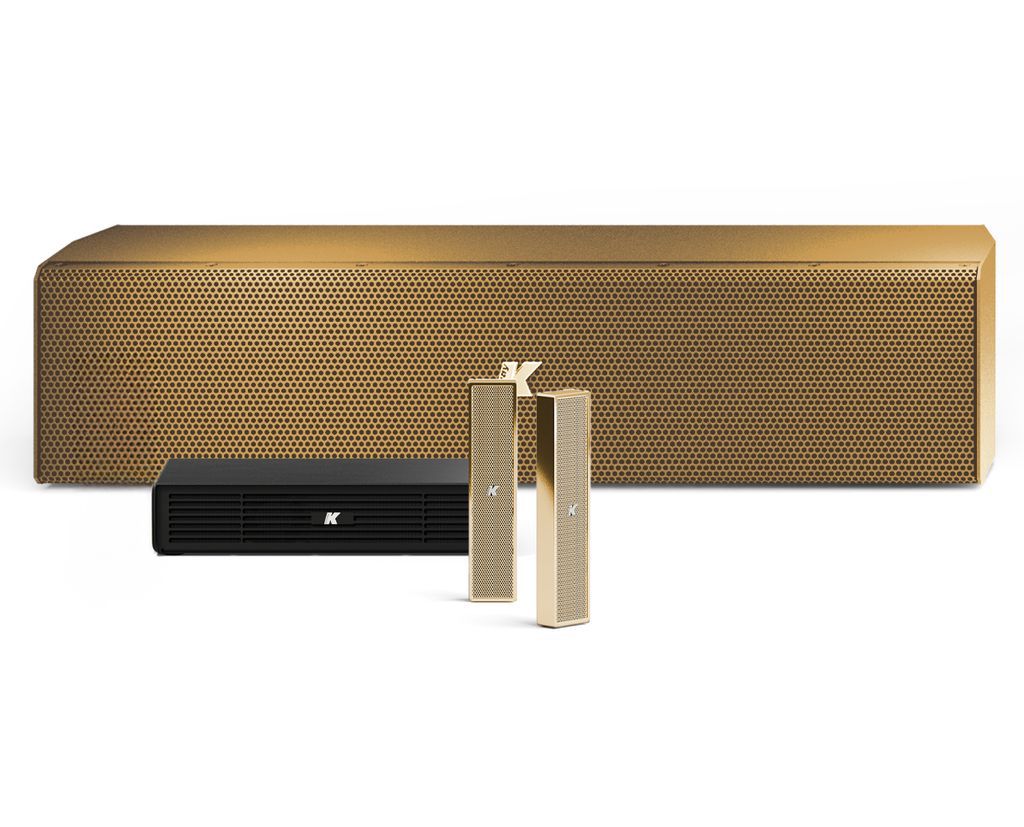

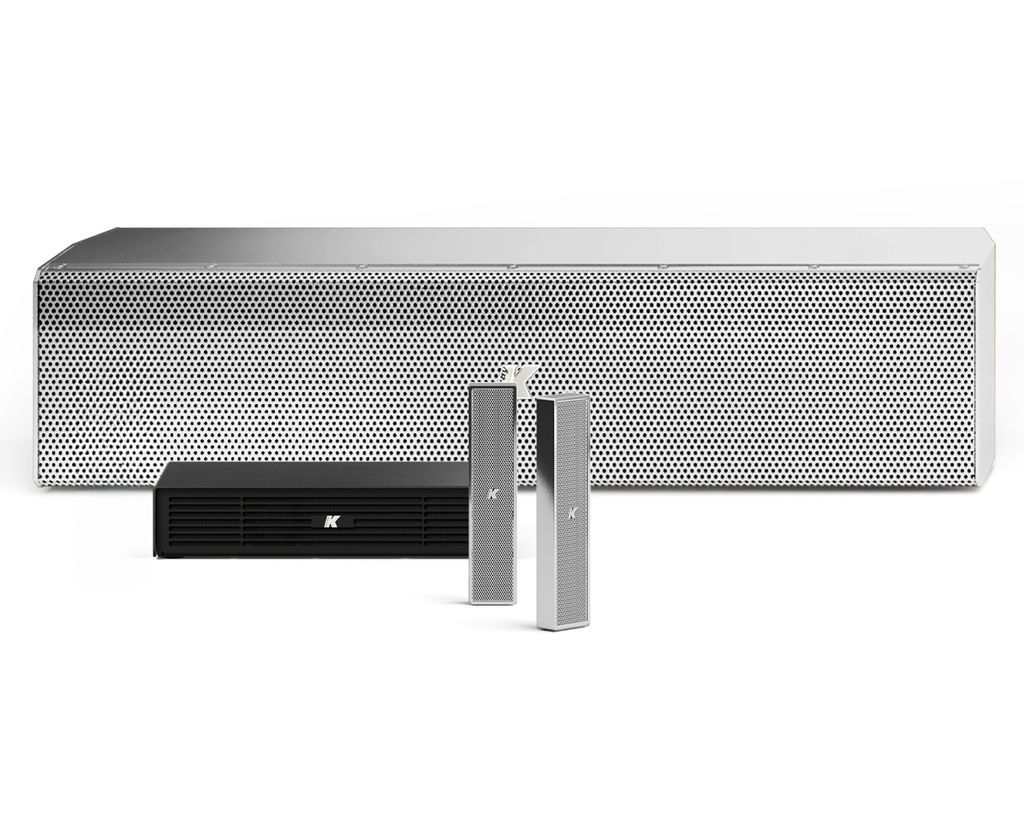

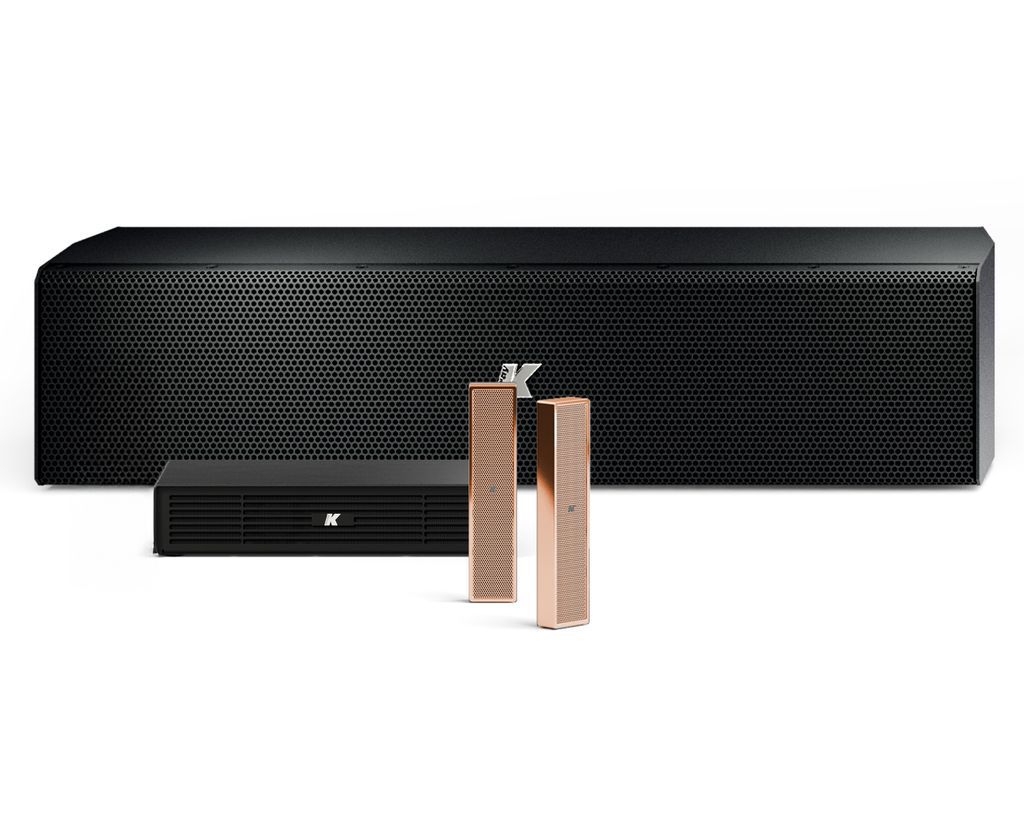

The Aziumt-KAMUT2L is a complete system composed of two 10cm-long Lyzard-KZ14 I loudspeakers in Anticorodal aluminum, an ultra-compact stainless steel Rumble-KU44-2 subwoofer easy for hiding in plain sight and a 144x144x46cm (5.7x5.7x1.8in) Kommander-KA02 amplifier with remote control.

Azimut

A complete solution in a minimalist design package

Lyzard-KZ14 I

General

  • Type:

    Line array

  • Transducers:

    4 x 0.5" neodymium magnet woofers

  • Frequency Response:

    500 Hz – 18 kHz (-6 dB)

     (1)
  • Max SPL:

    98 dB (peak)

     (2)
  • Rated Power:

    15 W

  • Coverage:

    V. 40° | H. 140°

  • Connectors:

    IN+ IN- screw terminals

  • Nominal Impedance:

    16 Ω

  • Disclaimer:

    Passive loudspeakers requires dedicated preset loaded on board of K-array amplifiers.

  • Disclaimer:

    New materials and design are introduced into existing products without previous notice.

Handling and Finishes

  • Dimensions (W x H x D):

    22 x 100 x 11 mm (0.9 x 3.9 x 0.4 in)

  • Weight:

    0.059 kg (0.130 lb)

  • Material:

    Aluminum

  • Colors:

    Black, White, Custom RAL

  • Finishes:

    24K Gold, Polished

Regulations

  • IP Rating:

    IP64

  • (1) With dedicated preset.
  • (2) Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 8 m then scaled at 1 m

Rumble-KU44 I

General

  • Type:

    Passive subwoofer

  • Transducers:

    2 x 4" neodymium magnet woofers
    2 x 4" passive radiators

  • Frequency Response:

    45 Hz - 150 / 500 Hz (-6 dB)

     (1)
  • Max SPL:

    116 dB (peak)

     (2)
  • Rated Power:

    120 W

  • Coverage:

    Omni

  • Connectors:

    4PIN euroblock connector (included)

  • Nominal Impedance:

    8 Ω / 32 Ω selectable

Handling and Finishes

  • Dimensions (W x H x D):

    500 x 116 x 100 mm (19.7 x 4.6 x 4.0 in)

     (3)
  • Weight:

    5.9 kg (13.0 lb)

  • Material:

    Stainless Steel

  • Colors:

    Black, White, Custom RAL

  • Finishes:

    24K Gold, Polished, Brushed

Regulations

  • IP Rating:

    IP64

     (4)
  • (1) With dedicated preset
  • (2) Maximum SPL is calculated using a signal with crest factor 4 (12dB) measured at 1 m.
  • (3) Removable rubber feet not included in the measures
  • (4) More complete water protection with K-KUIP4 accessory.
  • Passive loudspeakers requires dedicated preset loaded on board of K-array amplifiers.

  • New materials and design are introduced into existing products without previous notice.

Kommander-KA02 I

General

  • Type:

    4ch switching mode, Class D Amplifier

  • Output Power:

    4x 50 W @ 4 Ω

  • Impedance:

    minimum 4 Ω (2 Ω PBTL)

  • Frequency Response:

    20 Hz – 20 kHz (±1 dB)

  • Connectors:

    Input:
    4x BAL input: Euroblock 1.5/ 3-ST-3.81,
    3.5 mm jack unBAL analog stereo AUX input,
    TOSLINK optical input,

    Output:
    2x Euroblock 2,5/ 4-G-5,08

    Digital:
    4x USB-A 2.0,
    1x RJ45 Ethernet,
    Bluetooth 4.1 Low Energy,
    Wi-Fi IEEE 802.11 b/g/n

  • Built-in DSP:

    Grouping, Input EQ, Output EQ, Signal Routing, Level adjustment, Dynamic Limiters, Delay

  • Remote Control:

    Wi-Fi dedicated K-array Connect mobile app. Ethernet wired K-framework3 multiplatform design and tuning software

  • MAIN Operating Range:

    Dedicated AC/DC power adapter 100-240V ~ AC, 50-60 Hz input / 24 V, 4 A DC output

  • Power Consumption:

    20 W @ 4 Ω load, Pink noise, 1/8 rated power

  • Protections:

    Over Temp. (Power Limiting – Thermal Shutdown), Short Circuit/Overload Output Protection, Power Limiting, Clip Limiter/Permanent Signal Limiter, High Frequency Protection

Handling and Finishes

  • IP Rating:

    IP20

  • Dimensions (W x H x D):

    219 x 45,5 x 170 mm (8.6 x 1.8 x 6.7 in)

  • Weight:

    0.7 kg (1.5 lb)

  • Material:

    Aluminum
